The Waterless DX geothermal system moves heat energy to and from the earth through a closed loop of environmentally-friendly refrigerant. The system uses buried copper tubing to exchange heat energy to and from the ground delivering hot or cool air into your home. Refrigerant circulates through the ground loops and the indoor heat exchanger while the indoor air handler pushes the conditioned air through the home.
At the center of it all is the heat pump, installed inside or outside the home, which works to move refrigerant through the ground loops and throughout the heating and cooling distribution system.

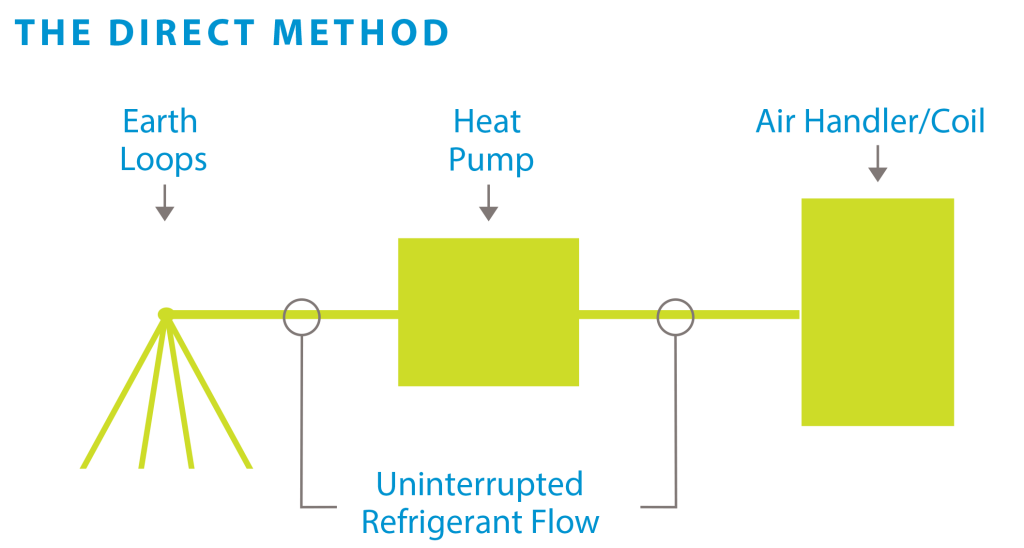

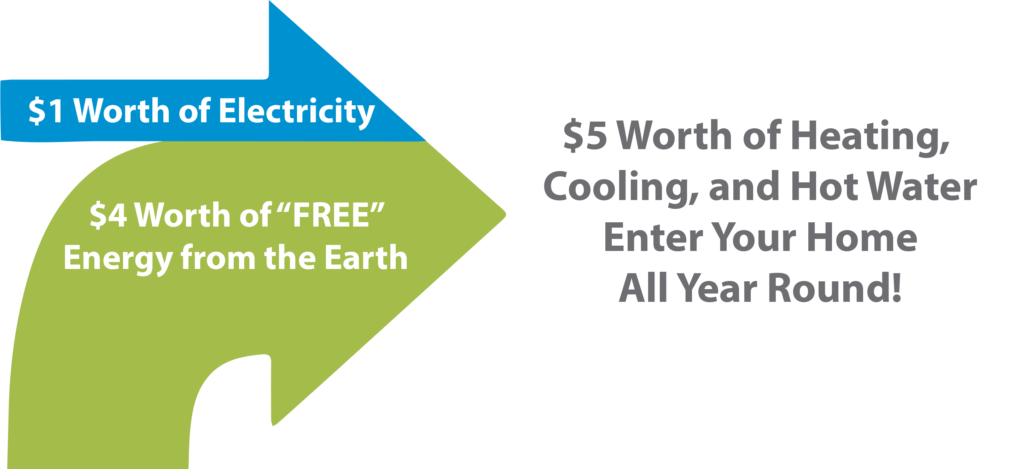

By using the direct exchange method, you’re able to reduce the number of heat transfers, which directly increases your home’s heat output. In a traditional ground source geothermal design there is a total of three heat transfers, while in a DX geothermal system there are only two.
When comparing heating and cooling systems, it’s clear that the Waterless™ DX Geothermal system could save you the most.
Use our savings calculator to find out how much you could personally save. A DX geothermal system is capable of heating and cooling a 2,100 square foot home for as little as a dollar a day! Imagine that, heating or cooling your home for less than the price of a coffeehouse cup of coffee. That means your yearly heating and cooling bill could be as little as $365.* In addition, you can also get free hot water through your Waterless™ DX Geothermal unit for even more savings.
*The cost of operation may vary based on your geographic location and the cost of electricity.
Thousands of people have begun to recognize and enjoy the simplicity, savings, and comfort of a Waterless™ DX geothermal design, which has repeatedly proven to be a more efficient heat pump design.
A Waterless™ DX geothermal system has the ability to heat and cool a 2,100 square foot home for as little as $30 a month! Save a substantial amount of money with a energy-efficient, environmentally-friendly renewable energy source.
With DX Geothermal technology dating back to 1945 when the first closed loop geothermal design was installed, you can be confident that a Waterless™ DX geothermal system will be a safe investment and perform up to your expectations.
The earth absorbs solar energy from the sun allowing the ground to remain at a nearly constant temperature, between 50 to 70 degrees Fahrenheit year around depending on your geographic location. A DX geothermal system utilizes these constant temperatures to exchange heat between your home and the earth as needed for heating and cooling.
By using the direct exchange method, you’re able to reduce the number of heat transfers, which directly increases your home’s heat output. In a traditional ground source geothermal designs there are a total of three heat transfers, while in a DX geothermal system there are only two.

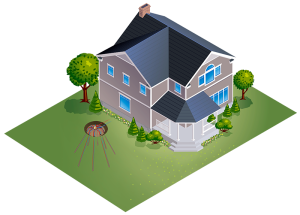

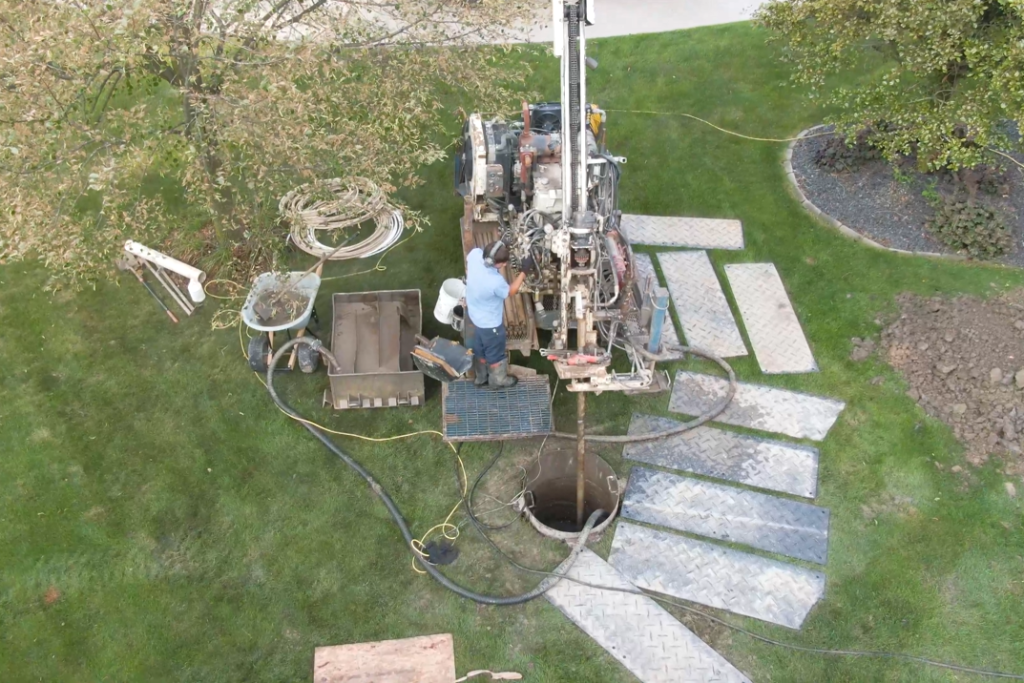

A diagonal ground loop configuration is drilled at a uniform angle between 70 to 100 feet into the ground using a small drilling rig and uses between 4 to 12 loops per system. This type of configuration allows the installer to dig a three foot diameter hole at the surface. Because it only requires a small amount of space and a trench that leads to the home, less of your yard will be dug up. This results in superior efficiency even when space is limited.
The three foot hole combined with the diagonal design enables an installer to maintain proper distance between loops for proper heat transfer, while digging up less area in your yard.

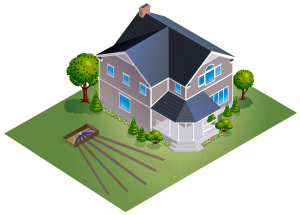

Sometimes referred to as a vertical bore and other times referred to as a horizontal bore; a directional bore loop configuration is really a hybrid between both a vertical and a horizontal ground loop. The loop length will typically extend out approximately 75-125 feet in several directions, while being buried anywhere between 10 to 15 feet deep. Although this design requires a larger area of land, it also can be installed with minimal digging to your yard. Using anywhere between 4 to 12 loops per system, the loops are appropriately spaced apart. Which allows them to transfer a good amount of heat from 15 feet below the surface of the earth. The loops are pushed into the ground and fan out into a hand shaped pattern returning back to the house at one location.

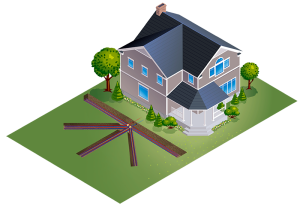

A horizontal loop configuration takes up the most amount of land but allows you to dig multiple trenches on your property which eliminates the need to use grout, and can save on your installation costs when yard space is not an issue. A typical system requires 4 to 12 loops to be installed depending on the size of the system and square footage of your home.

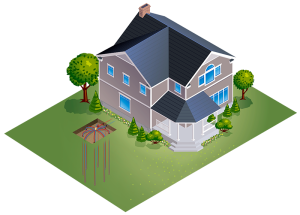

A vertical loop configuration is dug using a drilling rig to bore 100 feet into the ground. The vertical loops are placed up and down (vertically). Using 3 to 6 loops per system, they are placed at an appropriate distance apart which allow them to transfer heat appropriately. This requires less space than horizontal loops and achieves greater efficiency when yard space is limited.
Waterless™ DX Geothermal Systems offer 100% heating and cooling capacities through a simpler heat exchange process. This results in less heat changes, using less electricity, and significantly more savings over traditional heat pump designs.
If you choose to select the optional hot water generator, the system can produce free hot water at the same time it is heating or cooling your home. Depending on which hot water option you chose the system is capable of providing 50%-100% of your hot water needs for your home or business.
Waterless™ DX Geothermal units are fully enclosed and protected from outdoor elements. With no outdoor fan, and an insulated enclosed cabinet. Units can be installed indoors in a utility room, garage, or basement, and operate with little to no noise.
Waterless™ DX Geothermal technology was created with simplicity in mind. The system itself is created with less parts than any other system on the market. It heats and cools your home without using any water related pumps or parts. The systems simplicity and reliability can mean a longer life of the unit and potentially less maintenance costs.
Proudly made in the USA, Waterless Geothermal is dedicated to designing reliable and efficient products for its customers. Each system is manufactured with a focus on quality design and craftsmanship.
DX geothermal systems are some of the most comfortable options on the market, with the unrivaled humidity removal process. A Waterless™ DX Geothermal system will take a large volume of humidity out of your home contributing to a healthier lifestyle and improved indoor air quality for you, your family, and your belongings.
You can reduce your need for natural gas or oil and other forms of fossil fuel resources. This saves thousands of pounds of greenhouse gas emissions every year and will decrease the carbon footprint associated with your home. The U.S. Department of Energy states that ground source heat pumps reduce consumption and corresponding emissions up to 75 percent and have the lowest environmental impact of all heating systems.
More and more people are recognizing green building practices. Not only are they able to save you energy and lower utility bills but they are gentle to the environment while increasing the value of your home. As homeowners are recognizing these benefits, they are seeking out homes and businesses that offer sustainable energy systems like geothermal systems.
A Waterless™ DX Geothermal system requires minimal yard space and can be adapted to both new and existing homes of any property size. Thanks to a variety of loop designs, including a diagonal loop that fits within a 3-foot diameter circle, these systems offer the flexibility to be installed almost anywhere, even in urban settings. Additionally, the outdoor heat exchanger is underground, ensuring nothing is visible above ground on your property.
You can take advantage of many federal, state, and local incentives and rebates by installing Waterless™ Geothermal in your home. Click here to learn more about available incentives, or visit dsireusa.org.
Because of the environmental benefits of geothermal, there are many tax credits and rebates available to homeowners.
In addition to tax credits, investing in a geothermal system offers significant financial benefits. By drastically reducing your heating and cooling bills, the initial cost of the system can be fully recouped within a few years. This payback is a result of the system’s high efficiency and the sustainable energy it utilizes, making geothermal not only an environmentally friendly option but also an economically wise choice that continues to save you money long after the installation is complete.
Our experts begin with a thorough assessment of your property to determine the best geothermal solution tailored to your home’s specific needs and environmental conditions.
We design a customized geothermal system that optimizes efficiency and performance, ensuring that all components are perfectly suited to your home’s heating and cooling requirements.
Our factory-trained installers efficiently install your geothermal system. This may include digging holes for the loops, trenches, backfilling, ductwork configuration, installing & starting up the system.
Enjoy the comfort of consistent, eco-friendly heating and cooling while reducing your energy bills. Our geothermal systems deliver remarkable savings and superior climate control year-round.
Copper has a natural heat transfer advantage over plastic. As a highly conductive material, copper is one of the best methods of transferring heat making a much more efficient ground loop heat exchanger. Copper’s thermal conductivity (k) rate is more than 600 times greater than plastic, it’s this capability that allows copper to maximize the earth’s heat for your home. As a result, smaller diameter earth loops with smaller boreholes can be less expensive to drill compared to plastic pipe alternatives.
No, A water-source geothermal system is designed to pump water through the plastic ground loop, whereas a direct exchange DX geothermal unit, it pumps refrigerant through copper tubing. A copper loop cannot connect to a water-source unit, and a plastic loop cannot connect to a direct exchange unit.
Yes! The functionality and versatility of a DX geo system allows the system to both heat and cool your home efficiently. Your indoor thermostat can easily switch the geothermal system from the heating mode or to the cooling mode.
Yes! Waterless™ direct exchange geothermal uses an EPA approved, environmentally friendly refrigerant, used in both a Direct Exchange geothermal (DX) and water source geothermal systems.
Even the EPA confirmed the safety of refrigerant in its statement about a DX geothermal system when it stated, “Refrigerant is a non toxic, inert gas, posing no direct health threat to humans–nor to ground water–and it can be used with confidence in underground heat exchangers as a part of a DX System.”
Hot water production is one of the optional benefits a direct exchange (DX) geothermal system can provide! A hot water heat exchanger can be built into a system to generate domestic hot water or hot water generation. Option #1 (the desuperheater) partially generates hot water and can supplement your hot water specifically designed to generate 100% of your domestic hot water needs. Studies done by the U.S. Department of Energy show that a geothermal system that provides heating, cooling, and 100% domestic hot water will provide the most energy savings and can reduce your homes overall utility cost more than any other heat pump design.
A hot water desuperheater will generally provide 120°F water and can supply most of the domestic water needs depending on the amount of consumption. The cost of water through the use of a desuperheater is pennies a day or can even be free.
A Waterless™ geothermal compressor unit can be installed indoors or outdoors, while the air handler is always installed indoors.
The system has a very quiet operation, and provides a pleasant environment inside the home.
Yes! This is because it works with nature, and it emits no greenhouse gases. This means no pollutants are added to the air. A geothermal simply moves a majority of the thermal energy needed to condition your home, to and from the earth, and has to generate very little energy that doesn’t already exist.
Installing a Waterless geothermal is equivalent to planting 750 trees or permanently removing 2 cars off the road.
As green building practices gain attention because of their ability to offer energy saving and lower utility bills, updated guidelines provide real estate appraisers with a method of documenting energy efficient upgrades, including geothermal energy. This allows them to better evaluate the values of green homes.
Both home appraisers and real-estate agents are educated and acknowledge a geothermal system as a renewable energy source with greater value. The EPA has stated that geothermal systems can increase the value of a home $20 for every dollar saved in heating costs per year. Allowing your home to be much more appealing for resell.
Yes and No, all contractors must perform a heat load calculation to determine if the ductwork can be utilized.
It also depends on the age of the system and your current ductwork. Most systems are sized to the cooling load, not the heating load. Therefore, ductwork may need to be installed in homes that don’t have existing or adequate air distribution system. Your home should be assessed by a contractor who can tell you the requirements and modifications needed to make it the most efficient.
There are a few minor things in order to prolong the systems life. For example, routine maintenance such as changing the filters for the air handler. It is recommended that a trained professional checks the system two years after installation. Service dates can be discussed after that point.
When installed properly, copper loops can last for many generations. Copper is one of the few metals that exists naturally in the earth as an element today. It is also a stable metal and is non-corrosive in most soil conditions.
No, copper loops have been proven to have no adverse effect on grass, tree, or shrubs. Initially there will be bare areas in the ground from inserting the loops into the bore holes, but these can be restored by planting seed or sod. The vertical/diagonal loop design requires less space than a horizontal loop design, resulting in less of the homeowner’s yard being tore up
